Dispatcher login issue

Possible issues;

Scenario 1 : Existing Users which are trying to login.

Scenario 2 : Login with new user

Scenario 3 : Unable to generate OTP , QR Code not showing.

Wave PTX on Cloud

Wave PTX dispatcher Version 12.000.00.00a (V9)

Scenario 1:

Existing User which are trying to login.

Step 1: Log in to the instance registered

Asia        : https://wds.sg.msiwoc.com/WebDispatcher/idmui/index.html
Japan      : https://wds.jp.msiwoc.com/WebDispatcher/idmui/index.html
Korea      : https://wds.kr.msiwoc.com/WebDispatcher/idmui/index.html
ANZ        : https://wds-pr-wocausnz.anz.msiwoc.com/WebDispatcher/idmui/index.html
US          : https://wds.poc01.waveoncloud.com/WebDispatcher/idmui/index.html
Brazil      : https://wds.br.msiwoc.com/WebDispatcher/idmui/index.html
EMEA      : https://wds.eu.msiwoc.com/WebDispatcher/idmui/index.html
CA          : https://wds.ca.msiwoc.com/WebDispatcher/idmui/index.html
Columbia : https://wds.poc01.waveoncloud.com/WebDispatcher/idmui/index.html

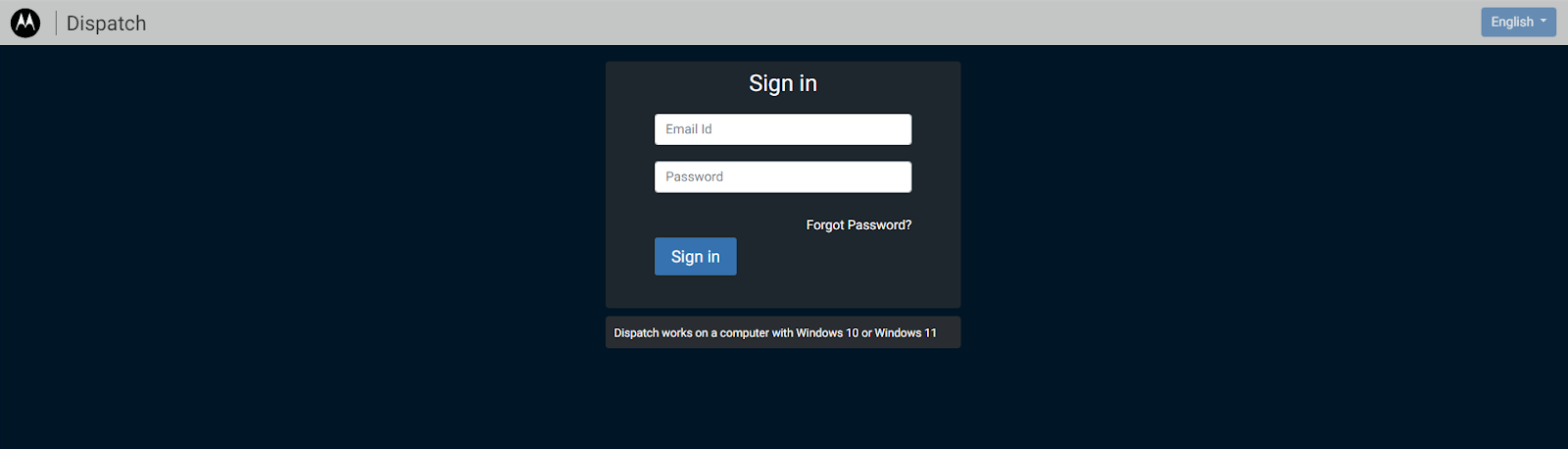

Step 2: Login with the mail id and password, it will redirect to the MFA setup.

Step 3: Install Google authenticator App on the Mobile / Add the authenticator extension to the browser to enable the OTP.

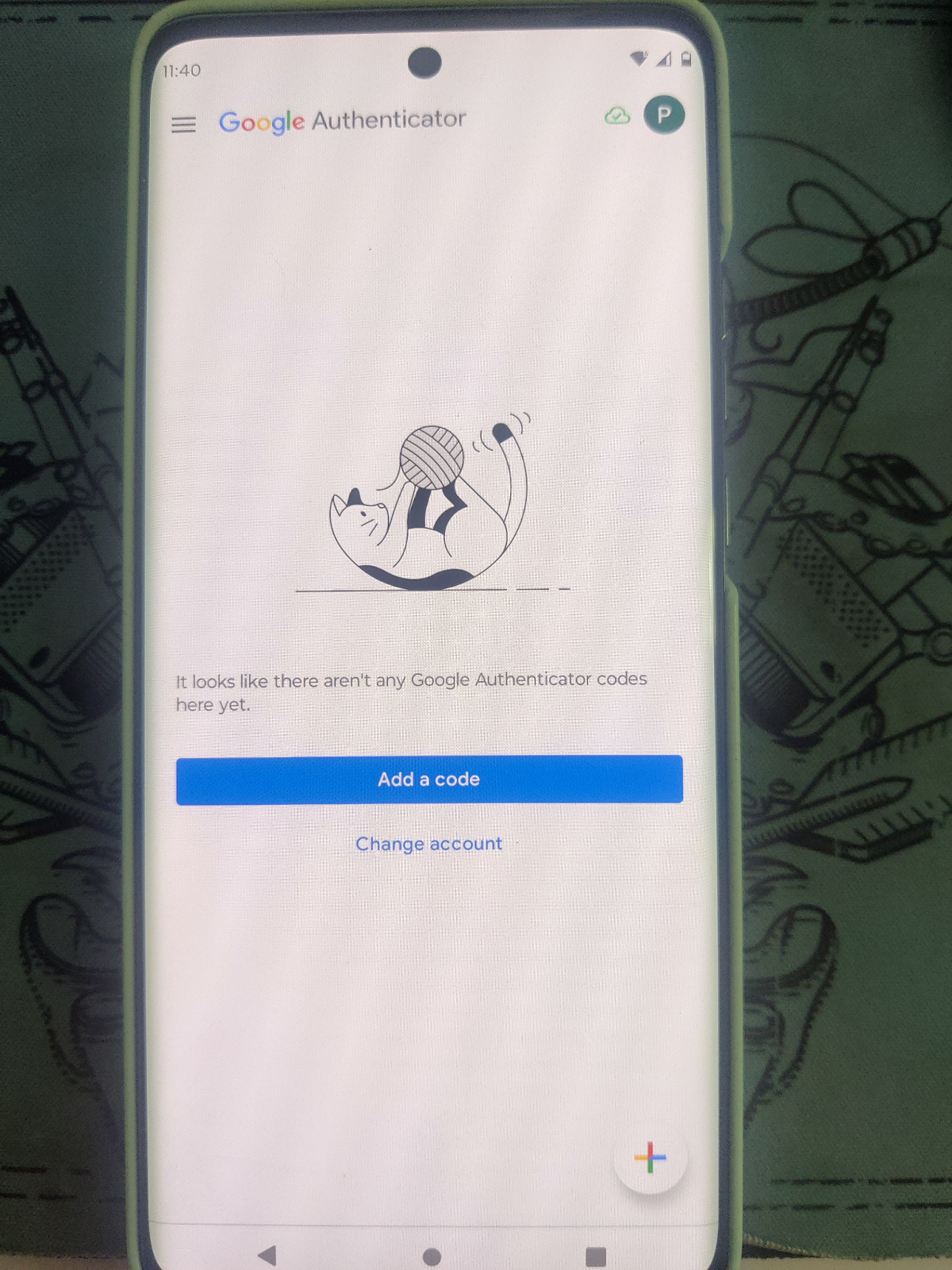

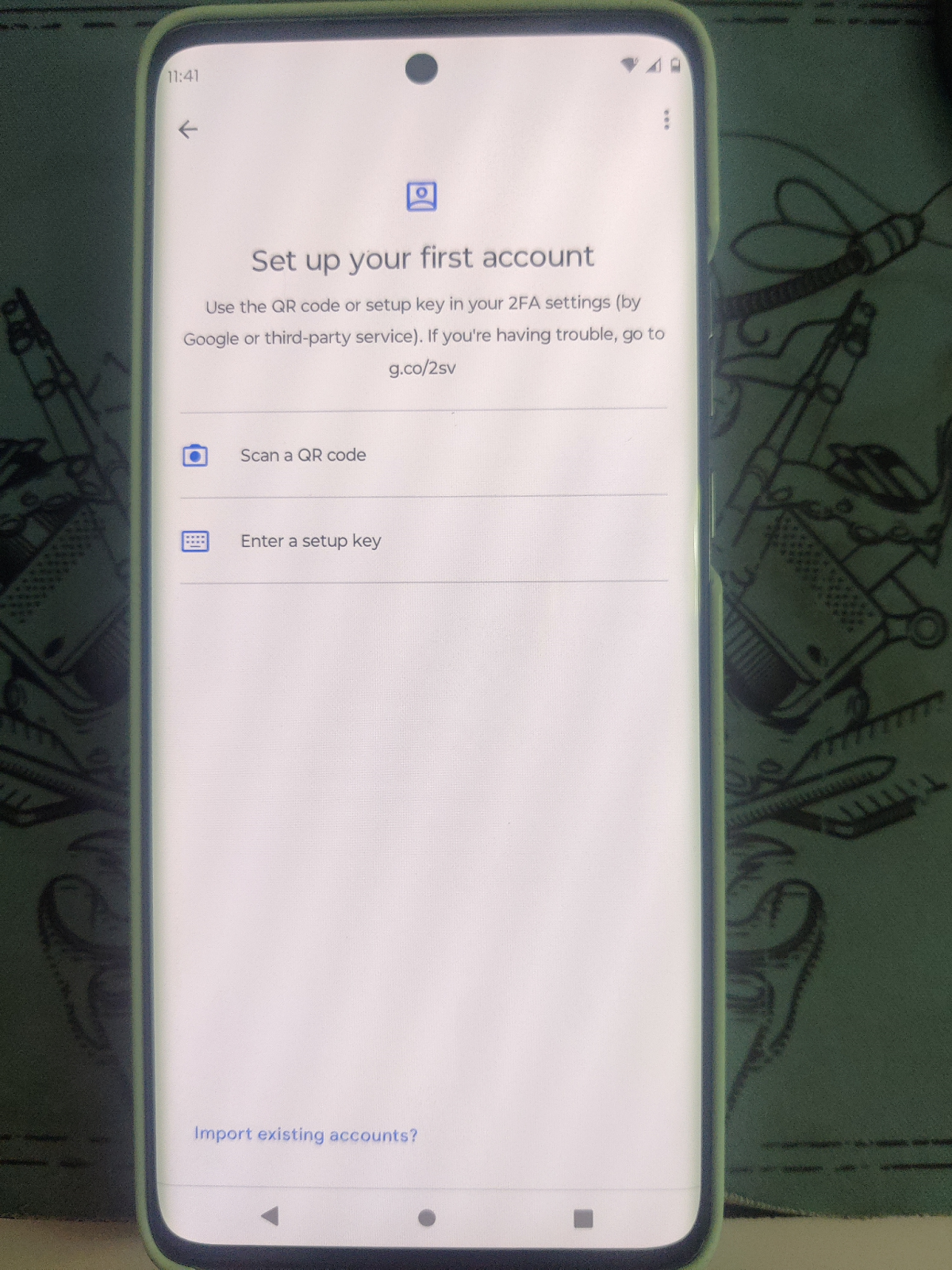

Step 4: Open the Authenticator APP → Add a Code → Scan a QR Code / Enter a setup Key .

Step 5: Enter the OTP Click Submit.

Scenario 2:

Login with new user.

Step 1: Creating a new User in the WoC portal.

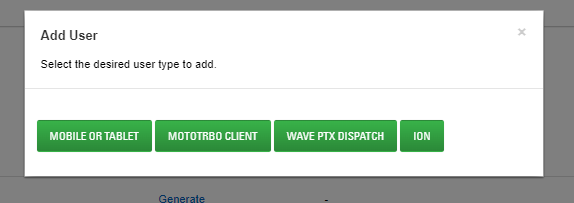

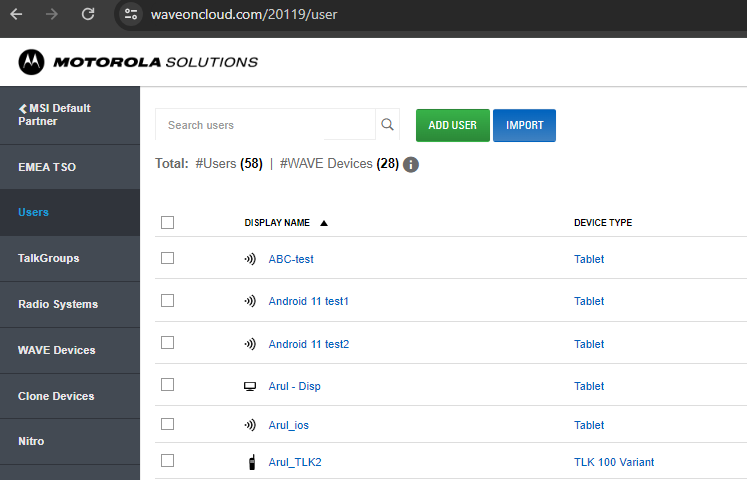

Login to WoC → Users → ADD USER → WAVE PTX DISPATCH

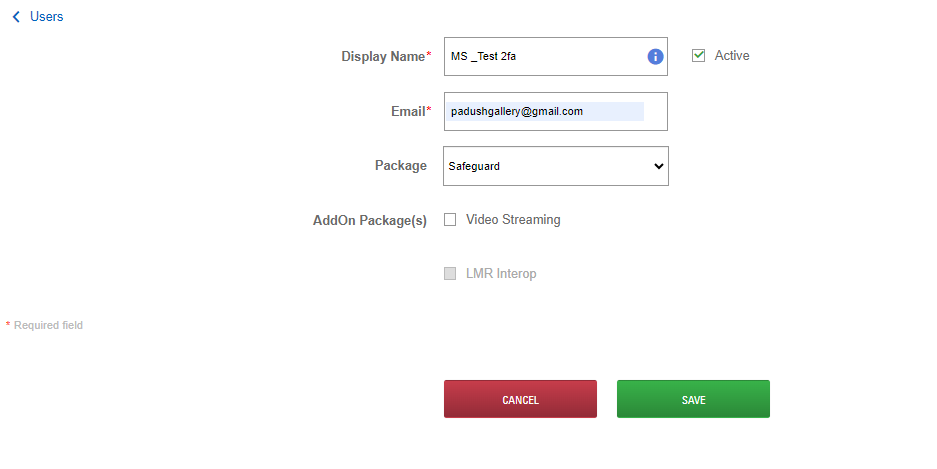

Step 2: Enter the required field(*) and Click SAVE

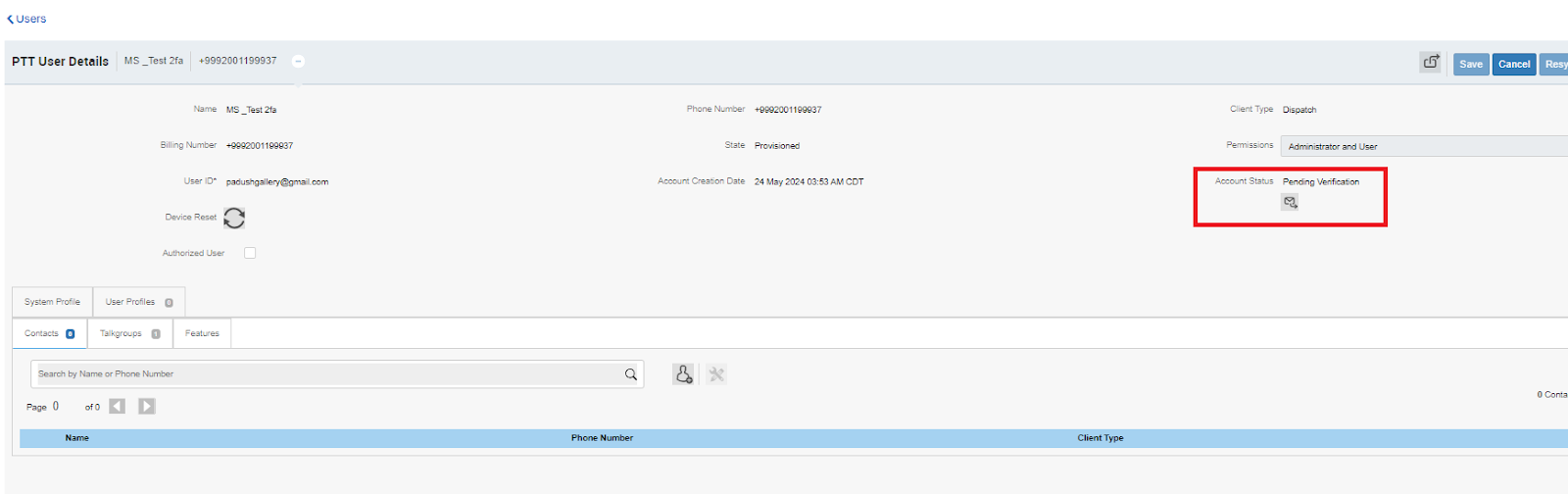

Step 3: After completing the above steps we can see the user status as below.

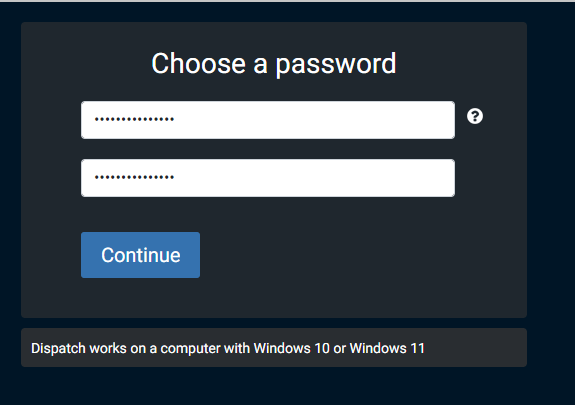

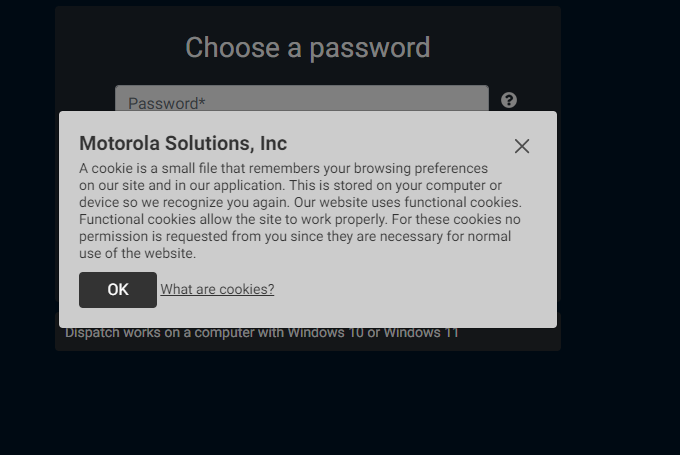

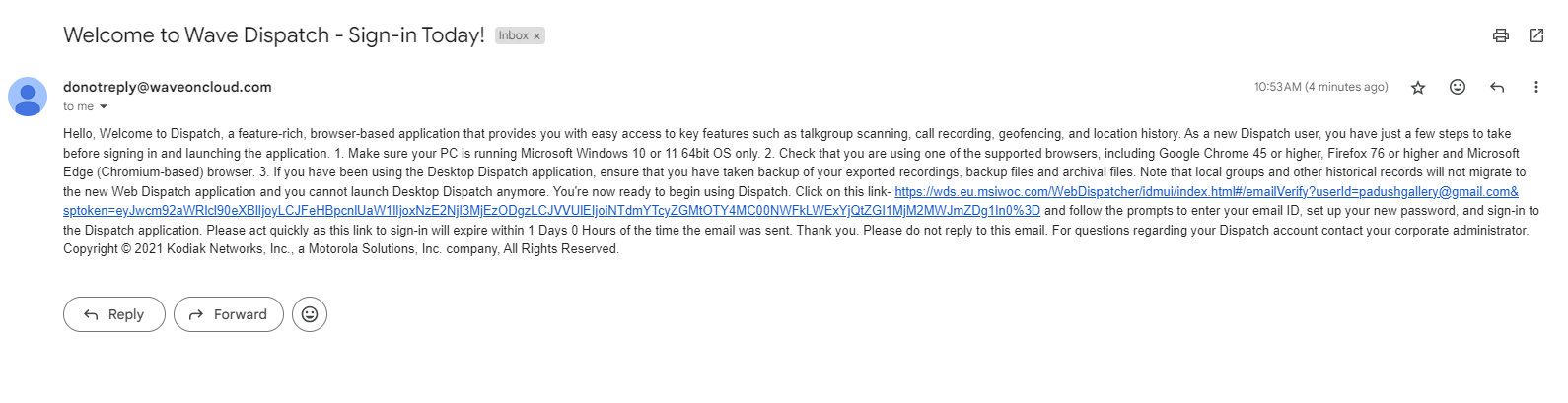

Step 4: Login to the email account and click on the link to complete the verification & Setting up the login password.

Step 5: After creating the login password , open with below url for dispatcher login.

Asia        : https://wds.sg.msiwoc.com/WebDispatcher/idmui/index.html
Japan      : https://wds.jp.msiwoc.com/WebDispatcher/idmui/index.html
Korea      : https://wds.kr.msiwoc.com/WebDispatcher/idmui/index.html
ANZ        : https://wds-pr-wocausnz.anz.msiwoc.com/WebDispatcher/idmui/index.html
US          : https://wds.poc01.waveoncloud.com/WebDispatcher/idmui/index.html
Brazil      : https://wds.br.msiwoc.com/WebDispatcher/idmui/index.html
EMEA      : https://wds.eu.msiwoc.com/WebDispatcher/idmui/index.html
CA          : https://wds.ca.msiwoc.com/WebDispatcher/idmui/index.html
Columbia : https://wds.poc01.waveoncloud.com/WebDispatcher/idmui/index.html

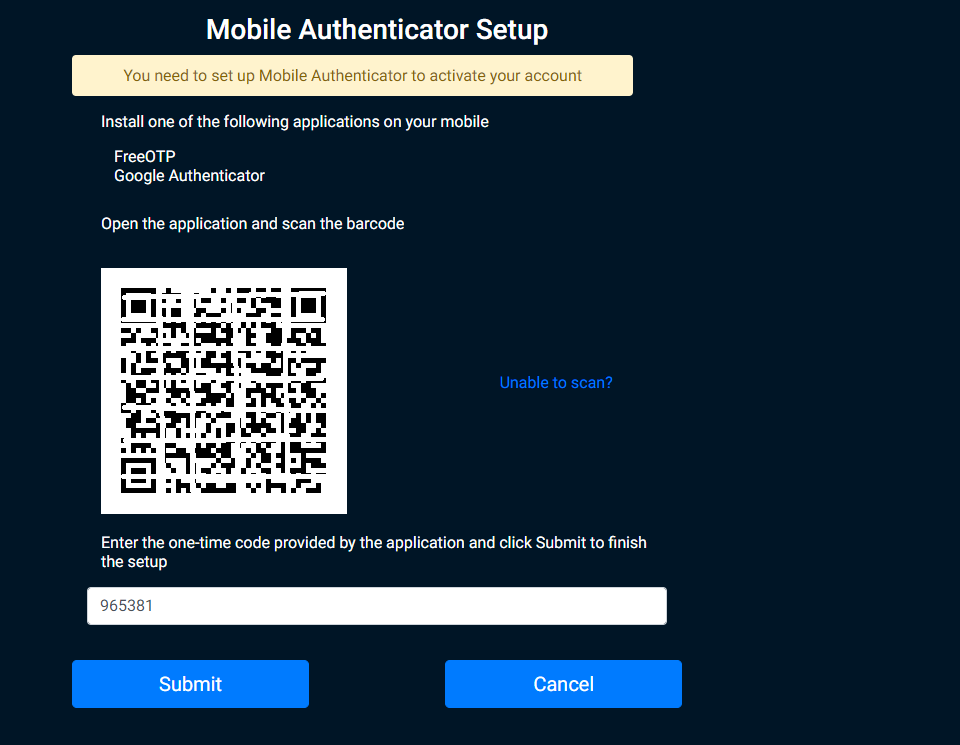

Step 6: Login with the mail id and password, it will redirect to the MFA setup.

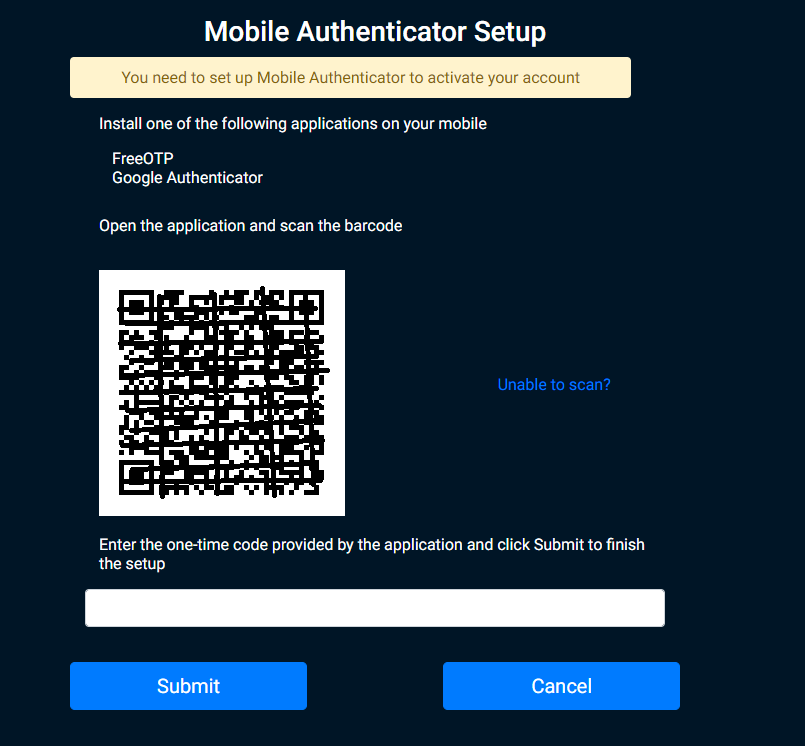

Option 1:- Scan QR Code

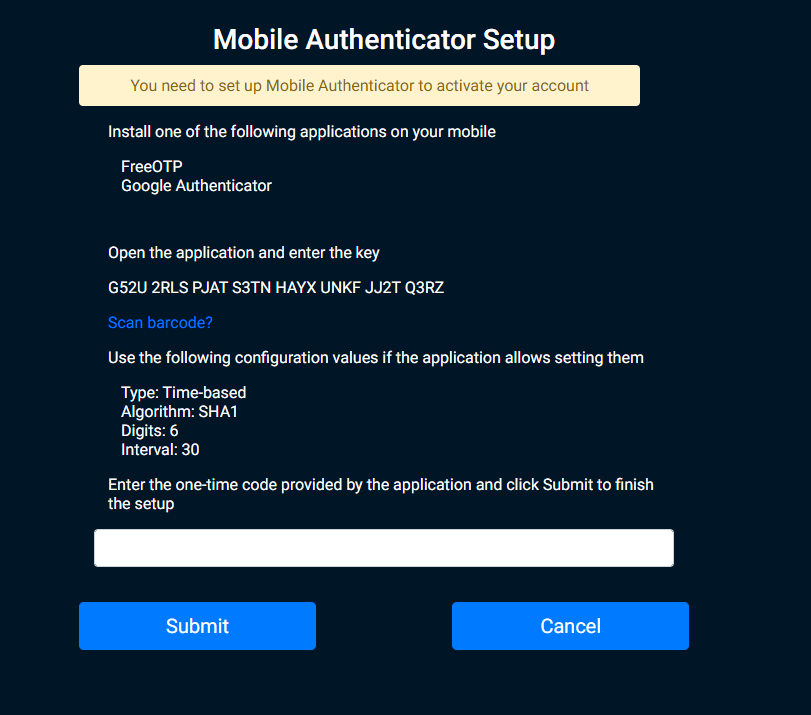

Option 2:- click Unable to Scan ? option to visible the key .

Step 7: Install Google authenticator App on the Mobile / Add the authenticator extension to the browser to enable the OTP.

Step 8: Open the Authenticator APP → Add a Code → Scan a QR Code / Enter a setup Key .

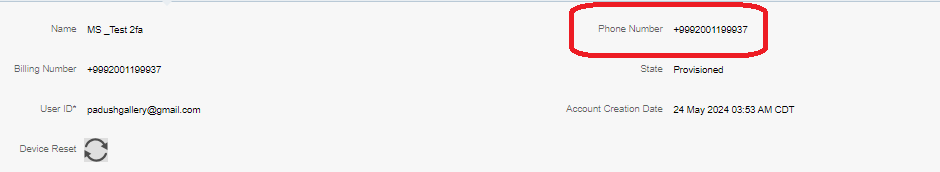

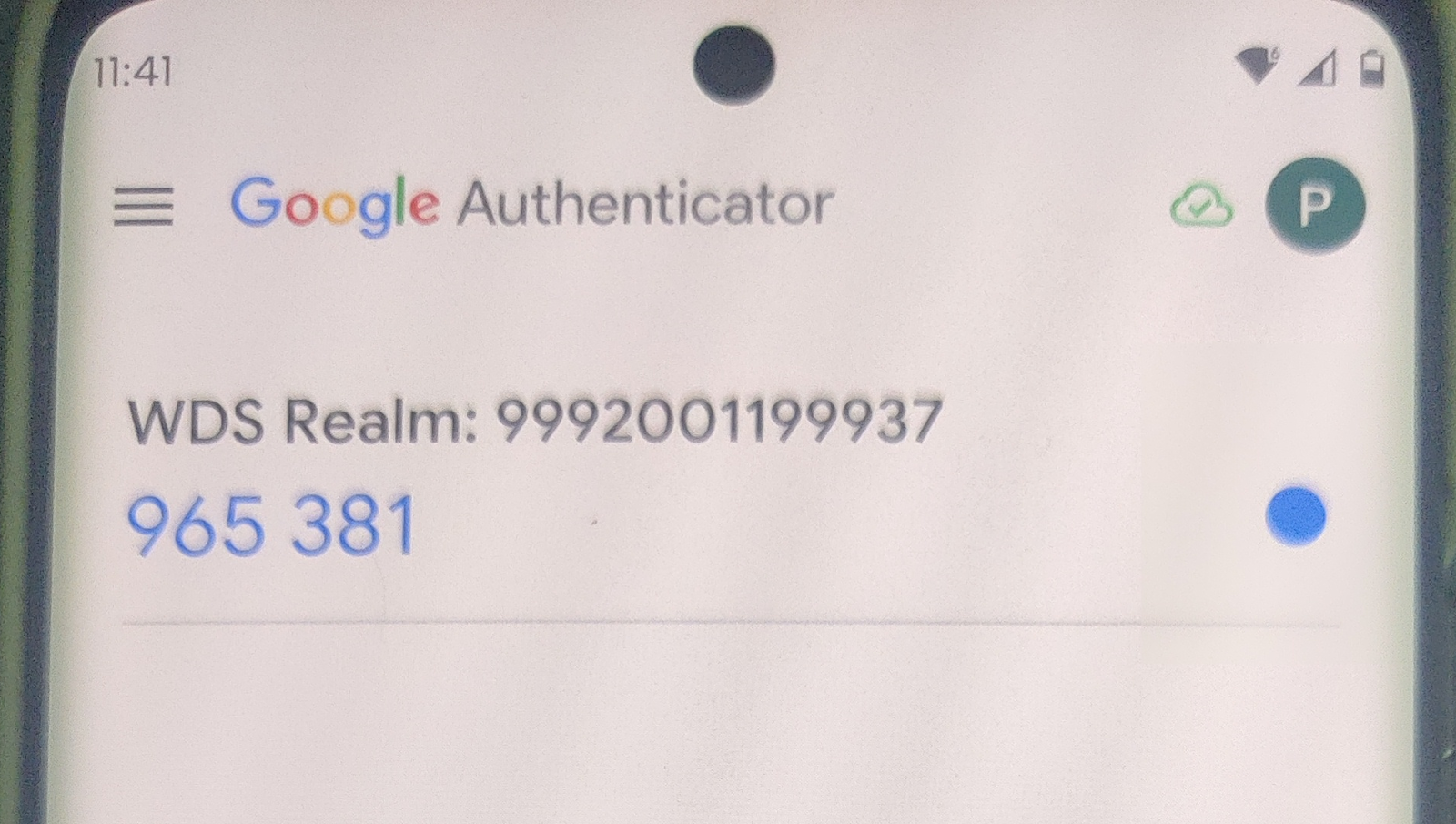

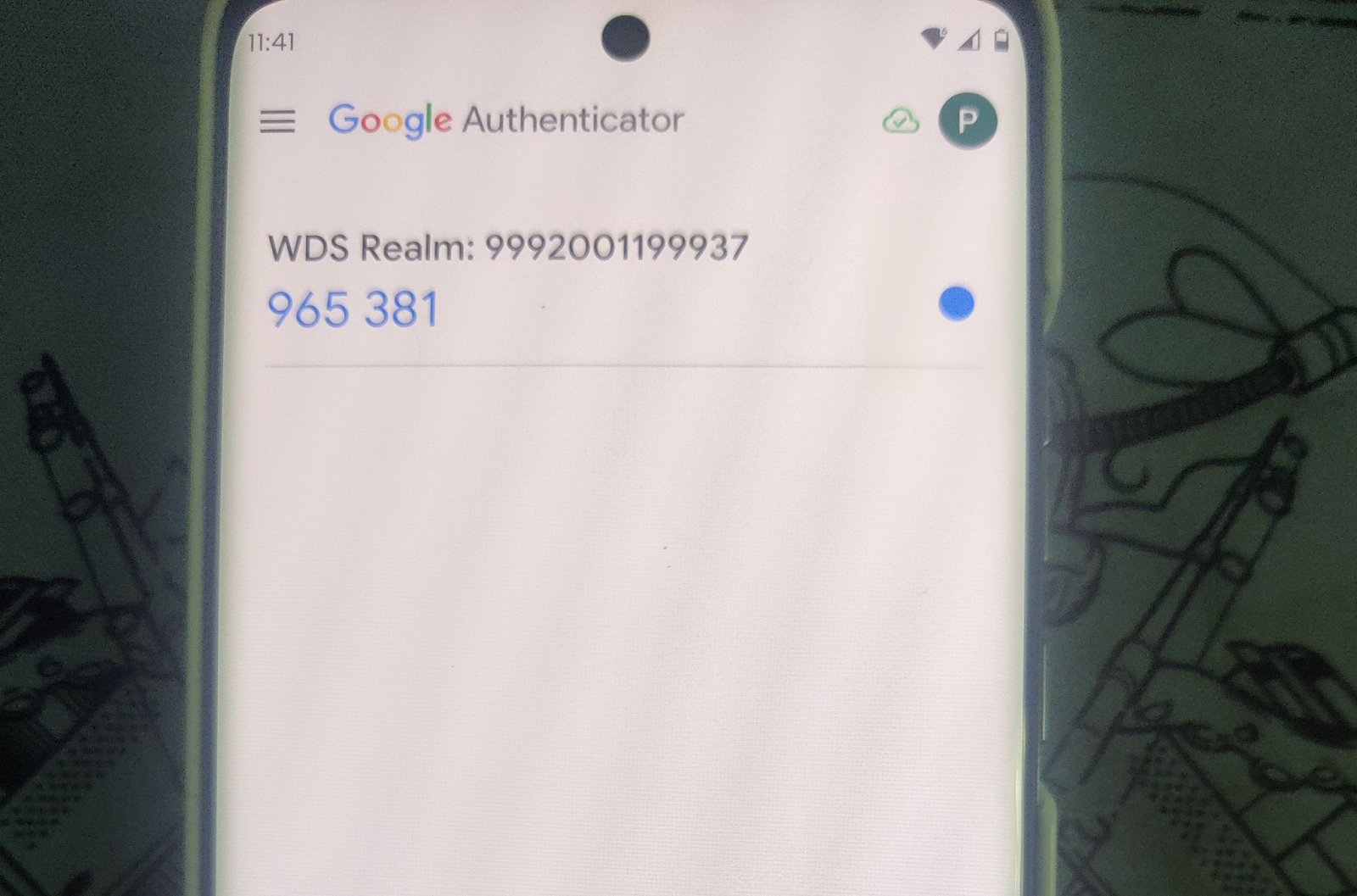

-->Make sure that the WDS Realm: number and the User mdn number from WoC portal are the same.

Step 9: Enter the OTP Click Submit.

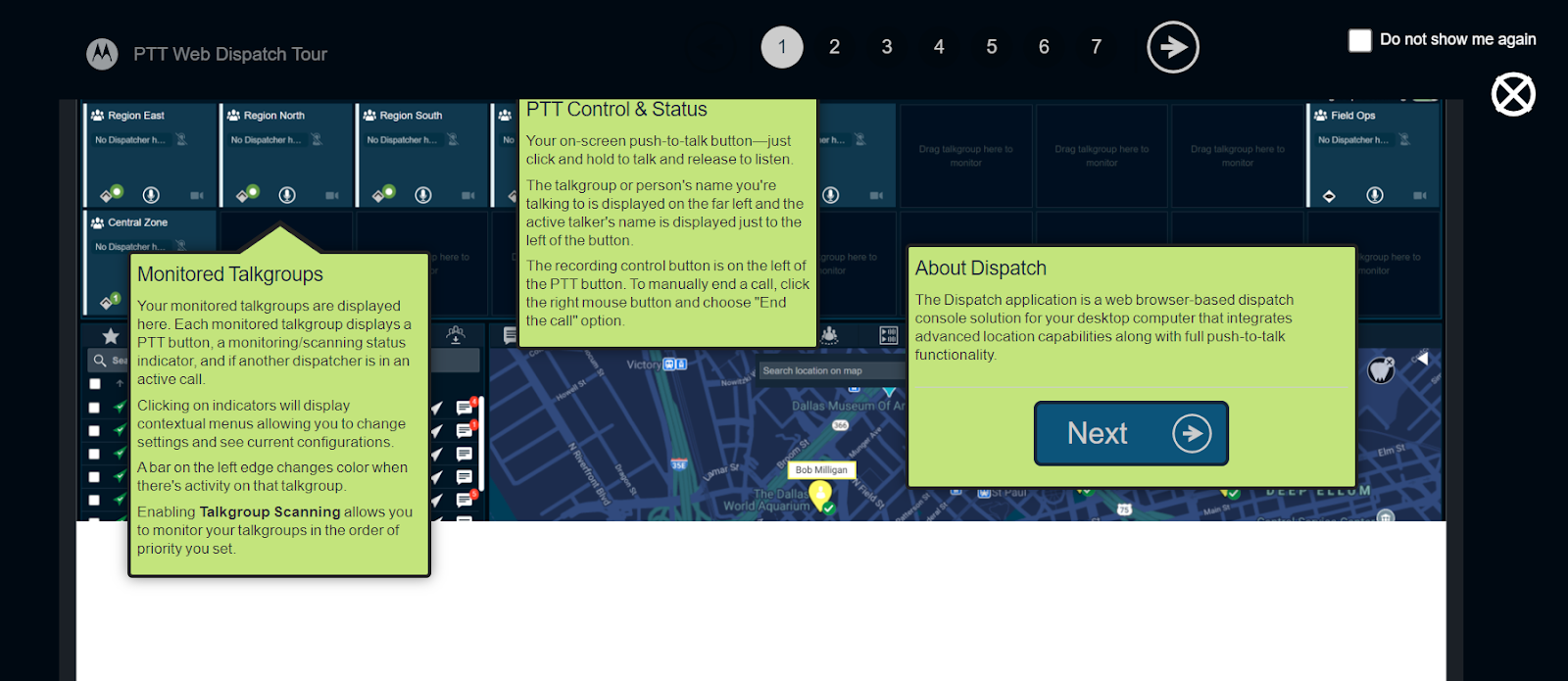

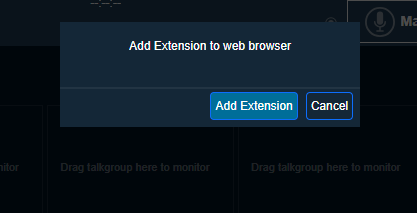

--> Login to the Dispatch console and add an extension if the customer is login for the very first time.

Scenario 3:

Unable to generate OTP , QR Code not showing when trying to login.

Solution:-

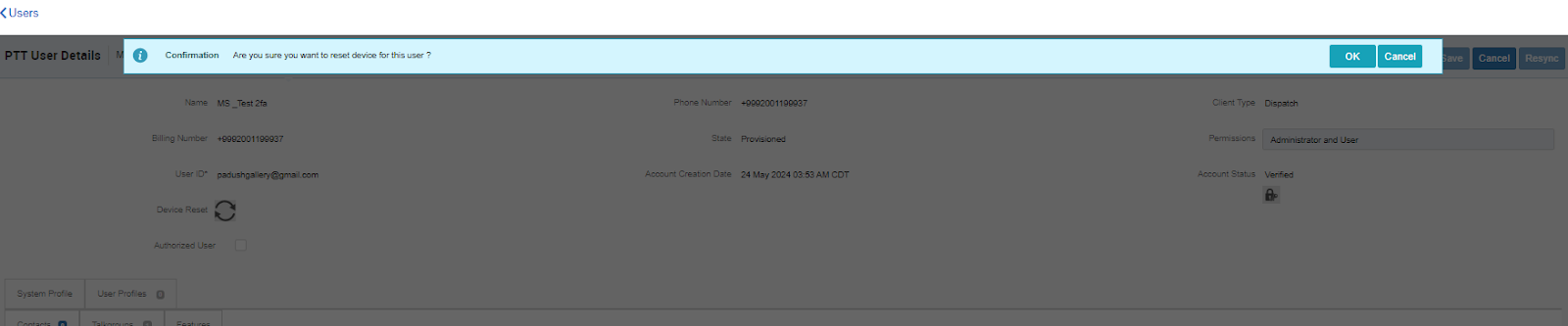

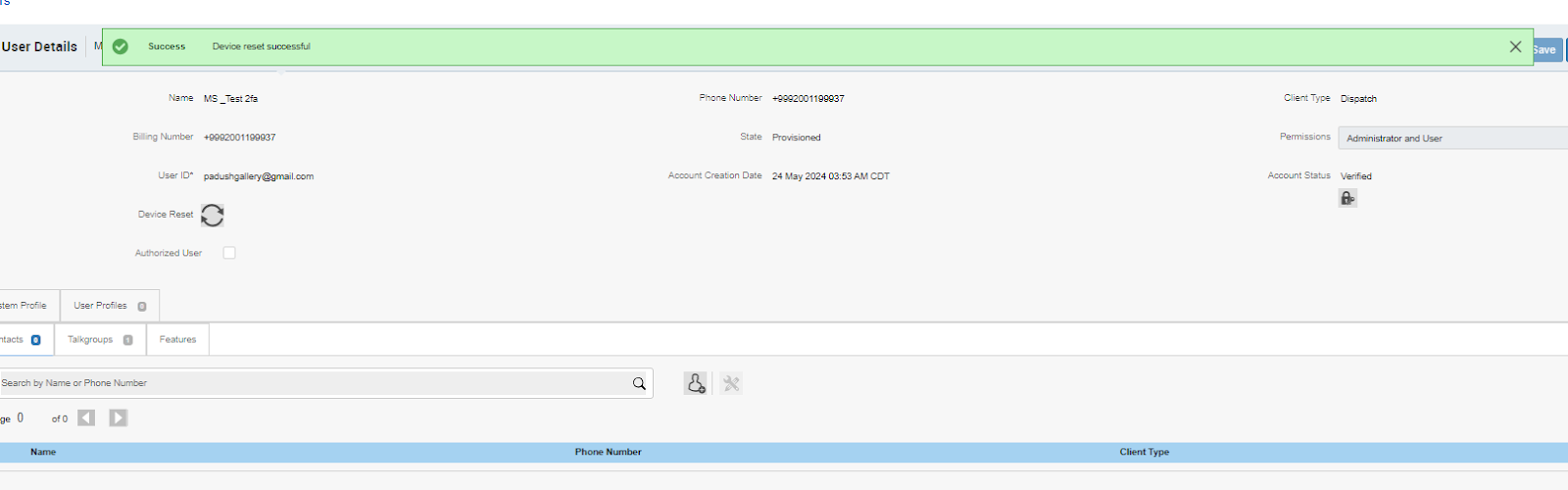

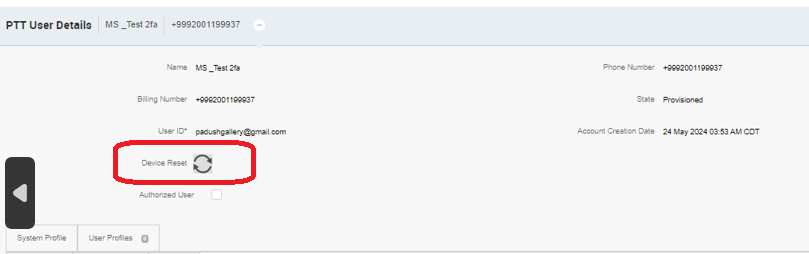

Step 1: Login to WoC → Users → Select the Dispatch user (eg: MS_Test 2fa) → Click On Device Reset → Click OK to Enable the QR code.

-->Go to the Dispatcher login page , follow the steps from Scenario 1.
