Summary
ALPR TRAILERS- ELECTRICAL CHARGE REQUIREMENTS & RUN TIME EXPECTATION
Reference
CUSTOMER IMPLEMENTATION GUIDE 9
- All trailers are powered by Solar Assistance and will have different run times based on trailer model, time of year, and area of the country being deployed to.

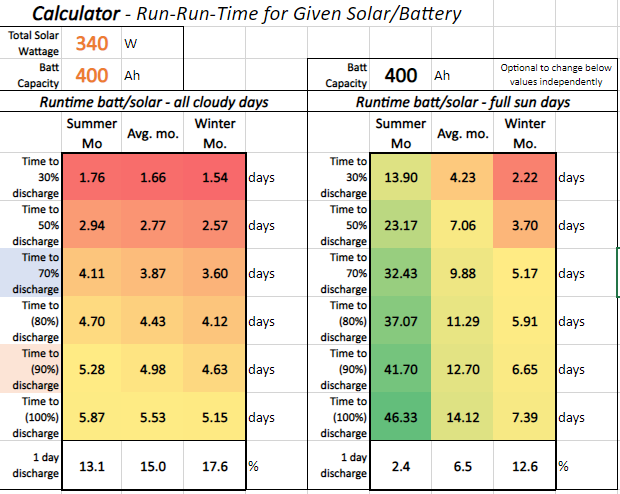

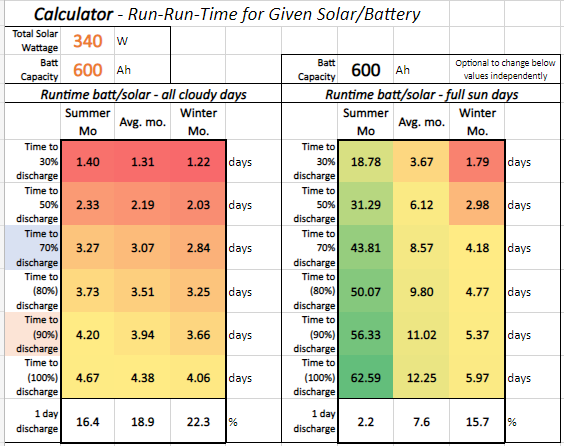

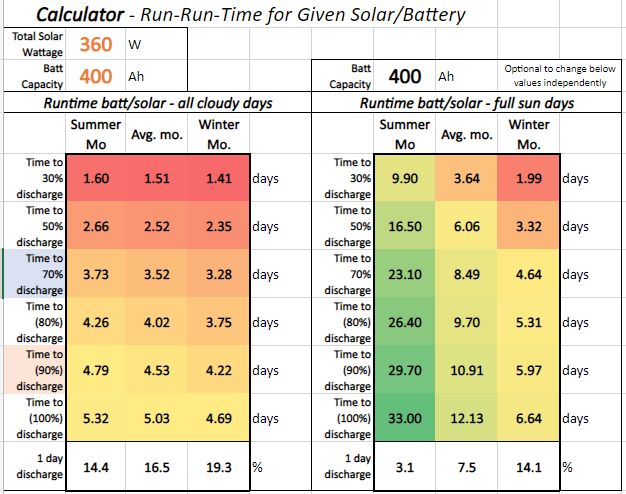

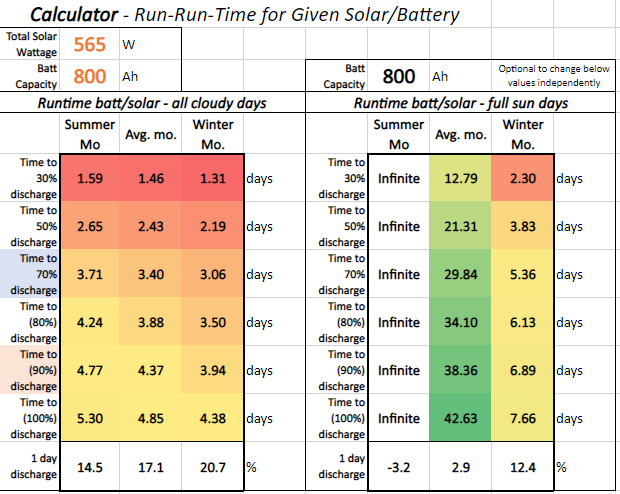

- A run time estimate can be provided upon request for each trailer type based off geographical zip code. Sample Run time calculations are shown below:
*For all AGM use 70% discharge number. For all LiPo4 use 90% discharge number*
Example Custom Trailer Run Time in New York State:
Example Long Run Speed Trailer Run Time in New York State:
Example Standard Message Trailer Run Time in New York State:
Example Standard XL Message Trailer Run Time in New York State:
- Trailers have 4 stage managed battery chargers included in each trailer. The trailer will go through a warmup / conditioning phase, full charge, cooldown, and then trickle charge.
- All batteries are considered maintenance items and only limited hardware manufacture warranty is included.
- Best practice is to regularly cycle batteries and allow them to go through normal discharge / charge cycles.
- All trailers are sold with AGM batteries with a life expectation of 2-3 years. Available battery upgrade options to Lipo4 are available. Life expectation increase on LiPo4 is 5-7 years.
- For connecting trailers to shore power, take a standard 120VAC extension cable and attach to marine grade connector located on front of trailer battery box *Please Note – Attaching two trailers to a single outdoor plug will trip the breaker and prevent trailer from charging.
- Ensure only 1 trailer is plugged into each outdoor plug location. Trailer charger pulls nearly 15amp at full load.
SUPPORT CALL PROCESS
More information about ALPR Speed Trailer Systems can be found at our partner website. Click Here for Vetted Security Solutions Knowledge Articles on ALPR Speed Trailers. The following articles are available on their website:
Speed Trailer Deployment Guide Video
Speed Director (ICC) Controller Quick Guide
Technical questions with installing, configuring, or troubleshooting the above articles for License Plate Radar system should be directed to Vetted Services. Click Here to create a Vetted Service Ticket for LPR or call (727) 440-3245 and then dial 1.
