Getting an error while programming MOTOTRBO radios. Error populates when I delete MDC and/or Quik Call 2. Error 200600202: There should be at least one MDC call in one configuration.


Error

Error 200600202: There should be at least one MDC call in one configuration.

Environment

Programming MOTOTRBO radios with CPS.

Workaround/Fix

This is a known error and will display if MDC and/or Quik Call 2 contact is removed. CPS/RM likes to have at least one MDC and one Quik Call 2 call in the contact list even if analog or either MDC/Quik Call 2 is not being used. The reason for having at least one is due to place holder reasons. In CPS1.o radio operators were not allowed to deleted the contact. In CPS 2.0 it does allow you to deleted, but due to the architecture of CPS 2.0 it needs at least one of each as a placeholder. Please reference screenshots below:

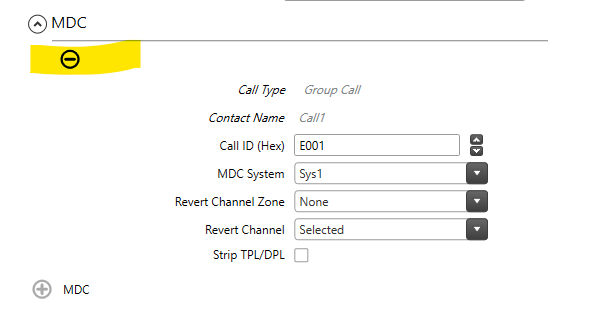

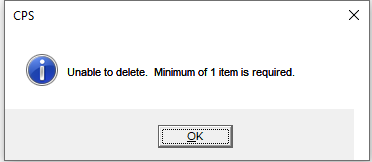

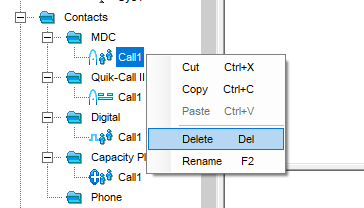

CPS 1.0 not allowing radio programmer to delete MDC contact:

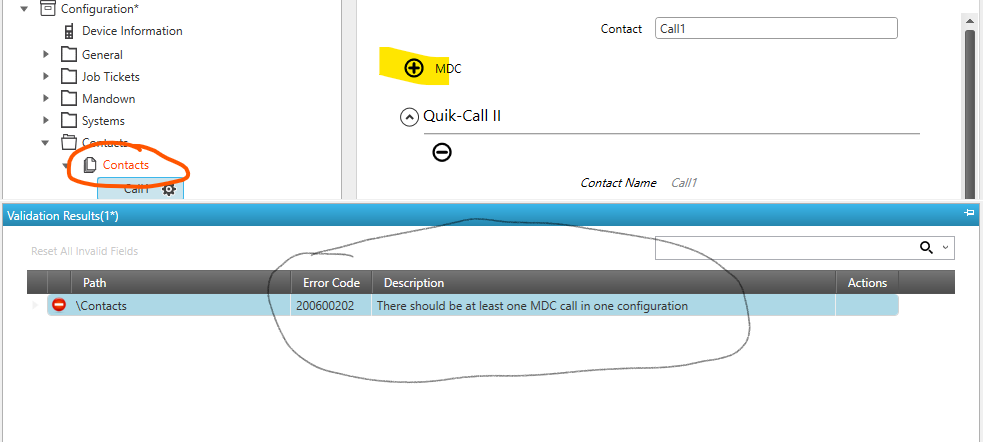

CPS 2.0 allowing radio programmer to delete the contact. After deleting Contacts is in red and there is a validation result:
