This article will walk you through how to check Tomcat / Standalone RAM usage using Grafana.

Flex

• Open Firefox, Chrome, or Edge (IE is not supported), and navigate to: https://[IP Address of their Spillman Server]:/4443/Grafana.
• Login with Flex credentials.

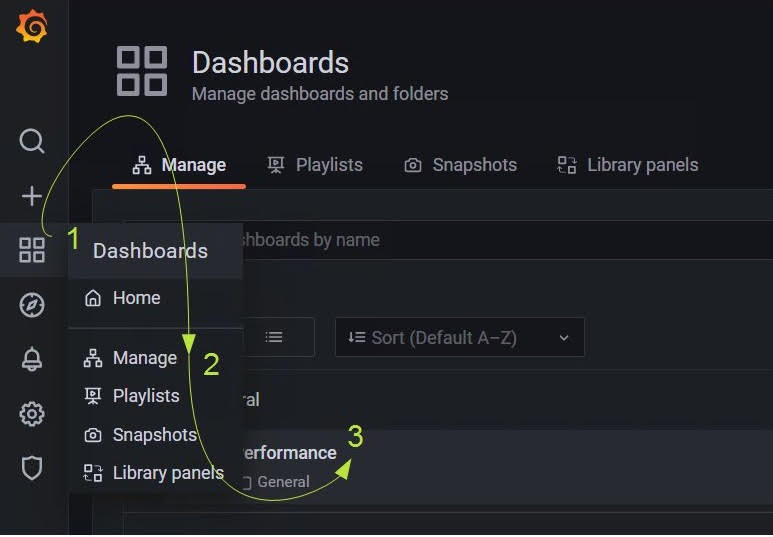

• Go to 1-Dashboards > 2-Manage > 3-Performance (as seen below).

• Scroll down to their Tomcat Memory graph, click the down arrow to the right of the graph's title, and click view.
• Set the time-frame for the graph to at least the Last 7 days.
• Verify whether their primary tomcat has been allocated enough memory (see examples below).

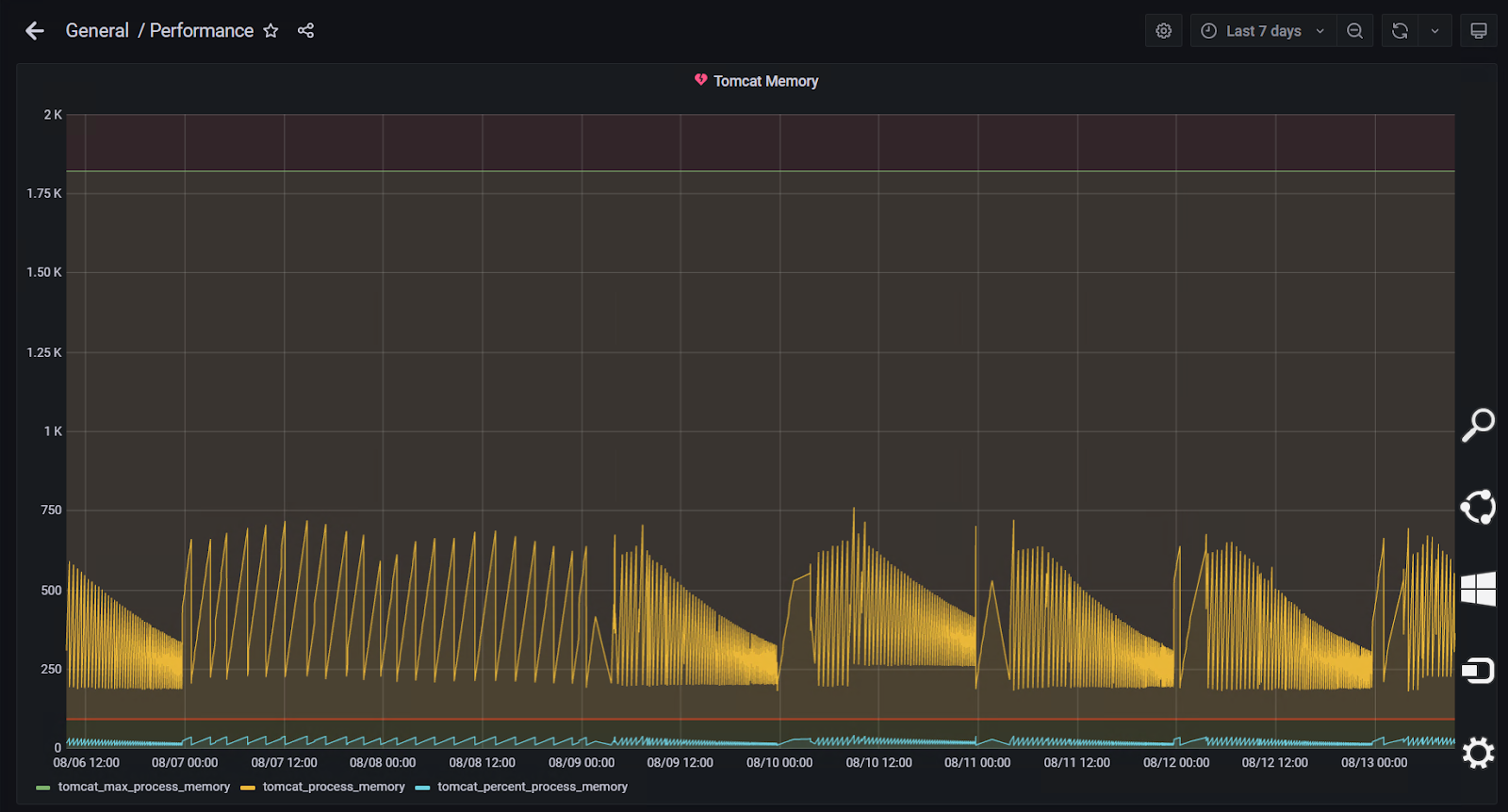

Good:

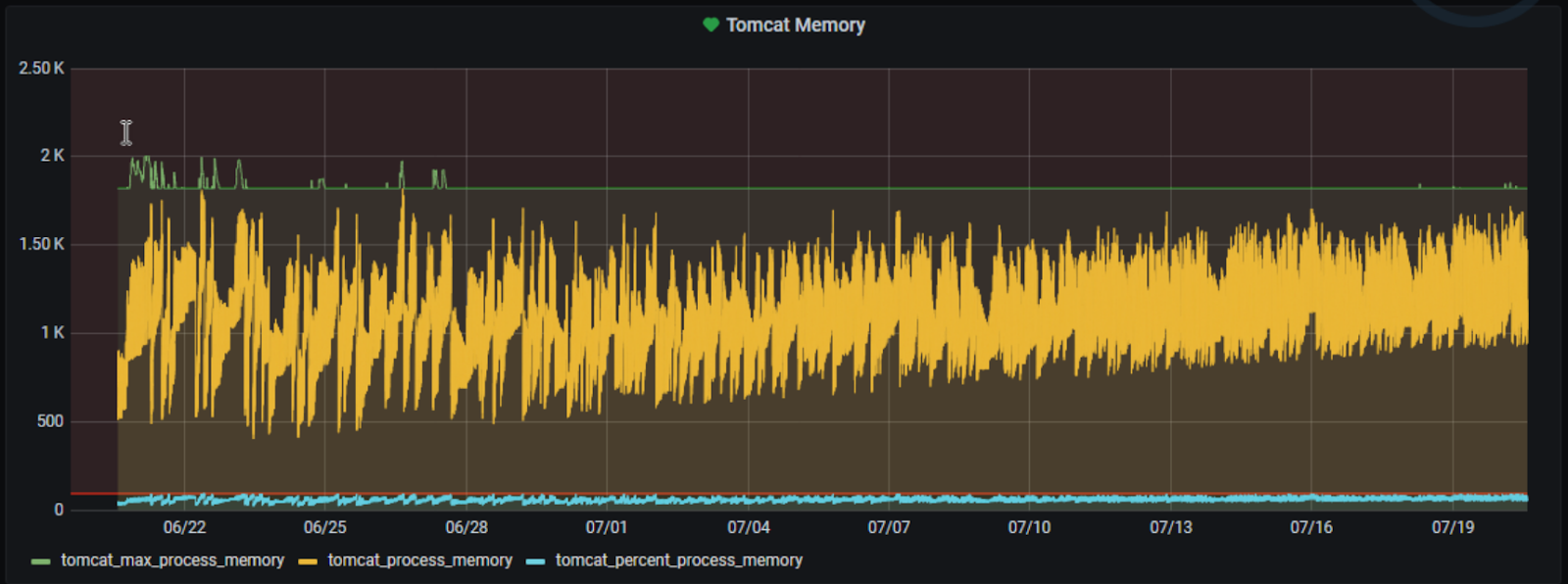

Bad:

• Use the above process to check memory allocations for the Interfaces Server, and other standalone tomcat servers.
• Increase memory allocations as needed using this guide as a reference.

Proactively adjusting tomcat memory allocations to a working level will:

• Actively fix issues the agency is currently experiencing.
• Increase the overall stability of their system.
• Prevent future calls (especially those in the middle of the night).
