DVRS export XML file from APX CPS not showing the channels listed when importing the file into the repeater using the FRC (Futurecom Repeater Configurator)

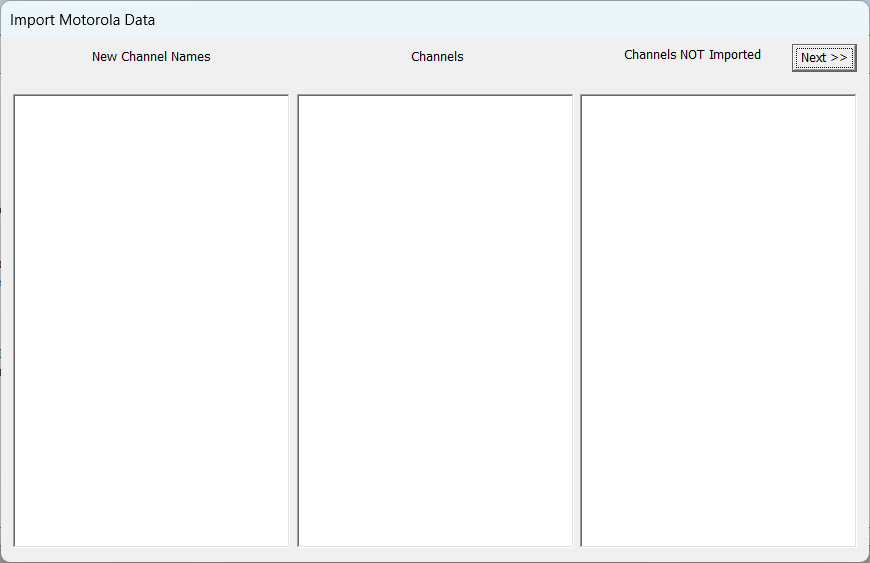

There are no channels listed when trying to import XML file on the FRC (Futurecom Repeater Configurator) as shown below:

Using the DVRS export feature from APX CPS, and importing it into the DVR

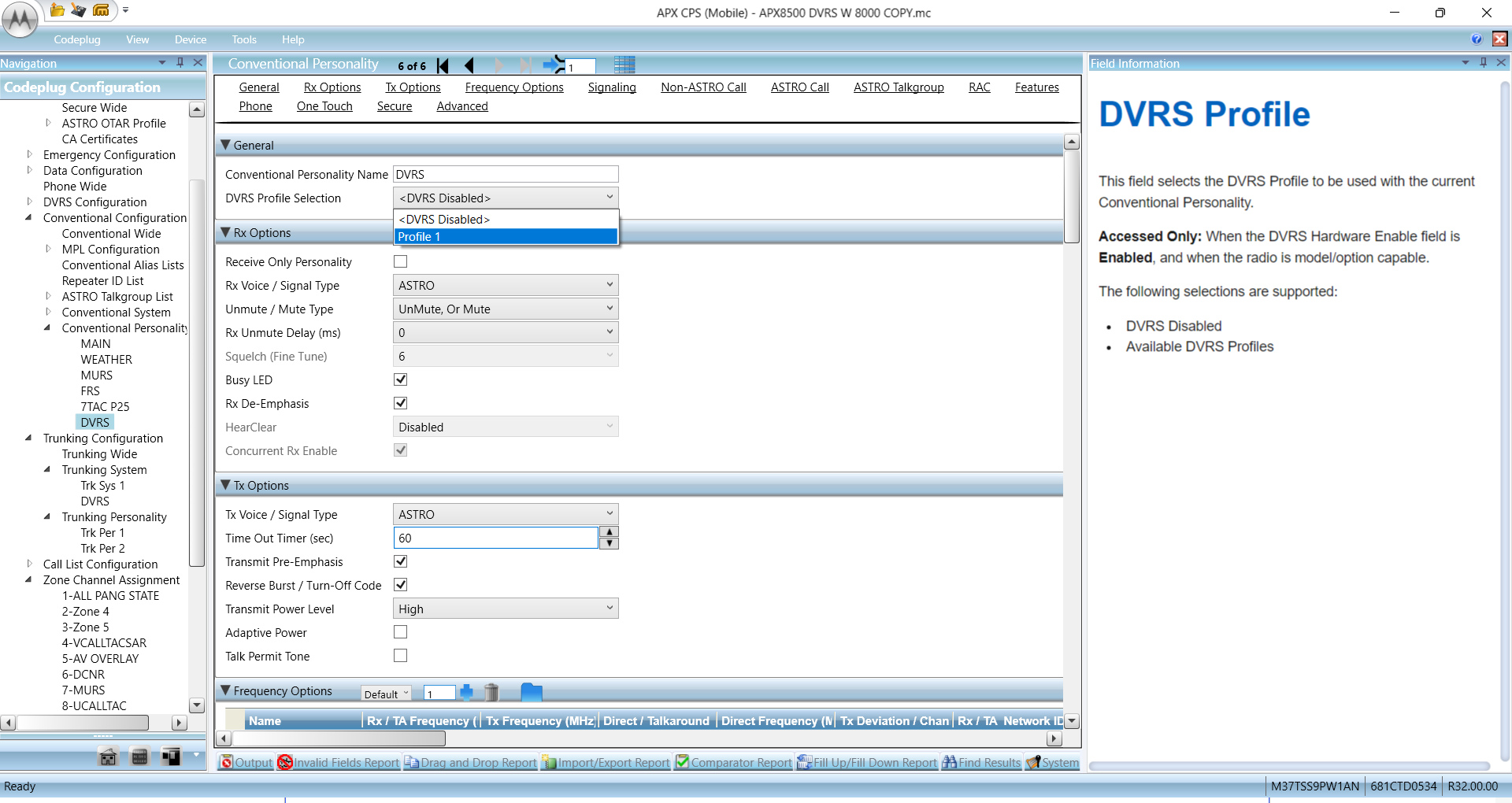

The Trunking and Conventional personalities used for DVRS need to have the DVRS profile enabled. Regarding conventional, the location within APX CPS is as follows: Conventional Personality > General > DVRS Profile Selection>Select the profile for DVRS as shown below:

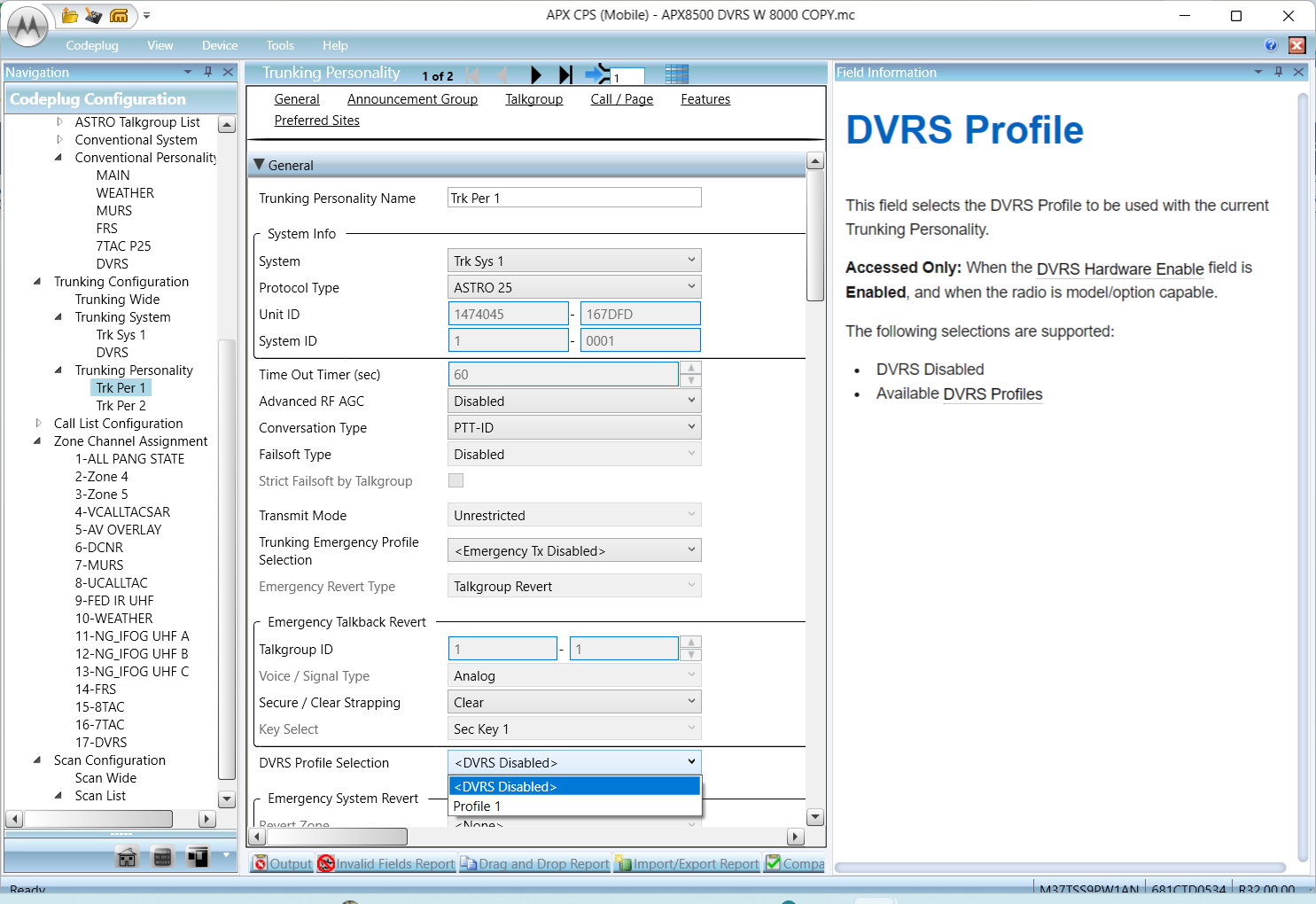

Regarding trunking, the location within APX CPS is as follows: Trunking Personality > General >DVRS Profile Selection, select the profile for DVRS as shown below:

- Save the codeplug, and write it to the radio

- Go to the features top menu and select DVRS Export, and save the XML file

- Open the FRC (Futurecom Repeater Configurator) then go to the File Menu > Import > Motorola File

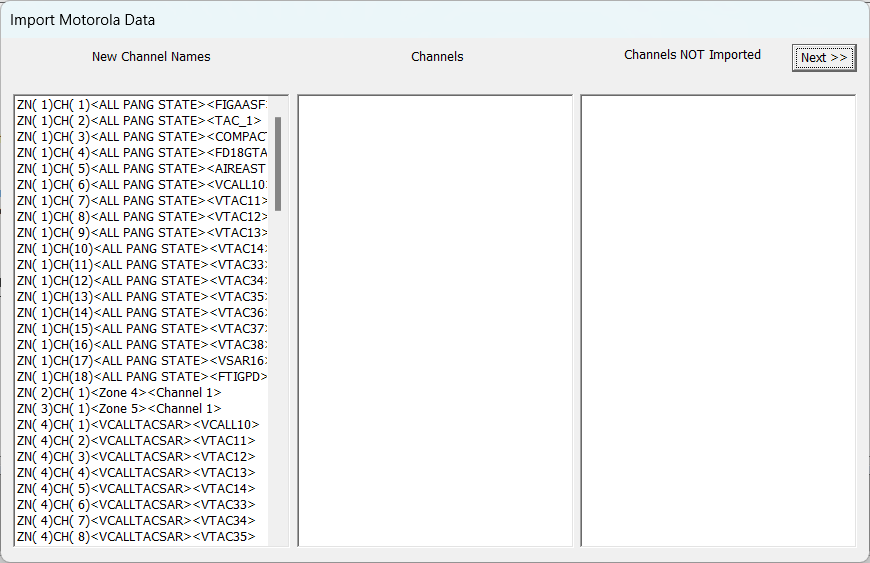

- The channel names should be listed under the New Channel Names list as shown below:
