How to set up channel color backlight within APX CPS


Topic/Objective

How to set up channel color backlight within APX CPS

Scope/Context

APX Customer Programming Software (CPS)

APX Radio Management (RM)

APX Radio Central Public Safety

Outcome/Recommendation

To configure the channel color backlight in CPS:

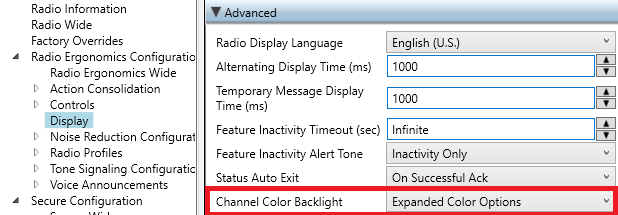

  1. Navigate to Display > Advanced > Channel Color Backlight to Expanded Color Options as shown below:

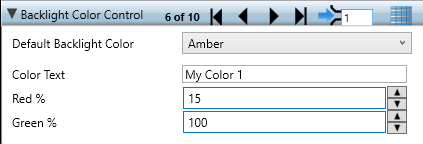

  1. Go to Display > Backlight Color Control >Select preferred Default Backlight Color > Type in preferred Color Text > Select preferred red text percentage > Select preferred green text percentage with an example as shown below:
